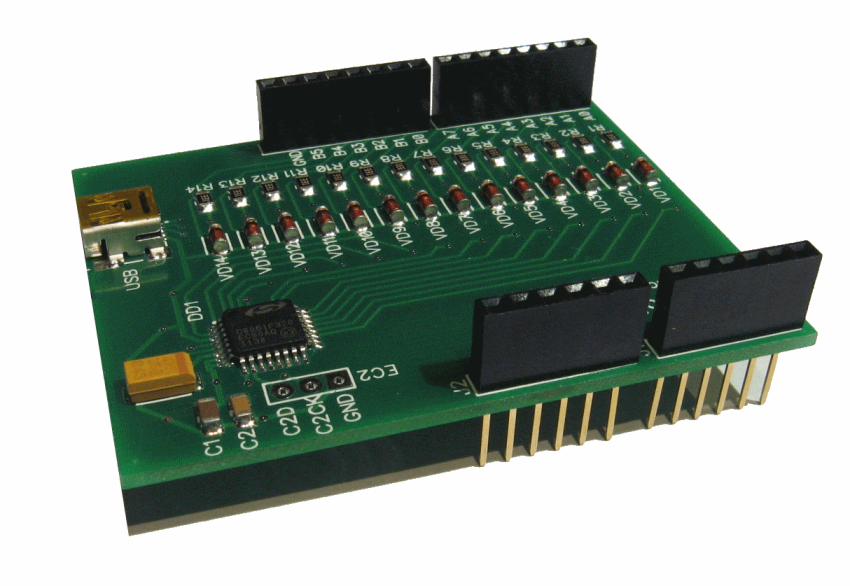

Multi-functional logic analyzer and signal generator on Arduino-compatible shield.
Simply place it on your Arduino and see all digital signals on the computer screen.
You don't need Arduino base to run this logic analyzer and it may work as a stand-alone device.
The software is included in the price and works on Windows 2000/XP/2003/Vista and Windows 7 32- and 64-bit versions.

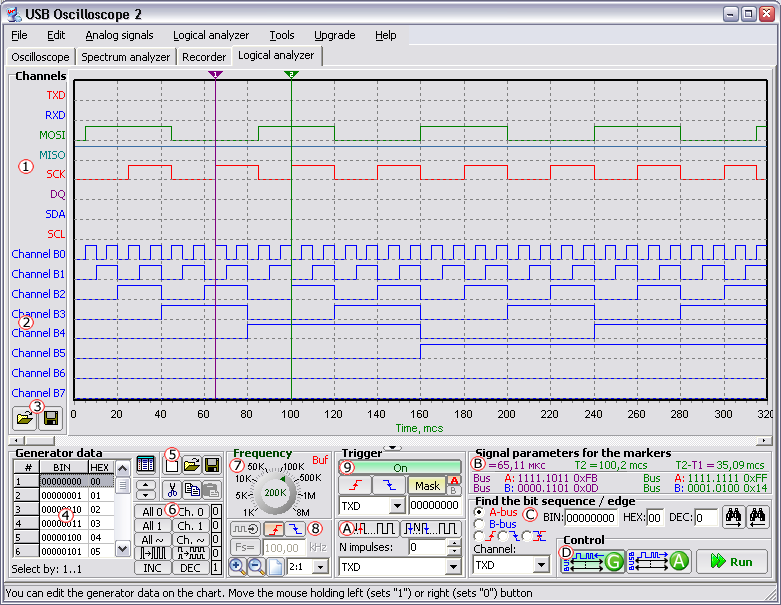

14-channel logic analyzer (8-channel if the generator is on)

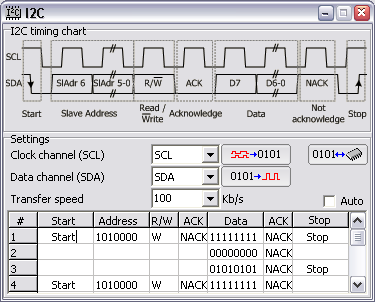

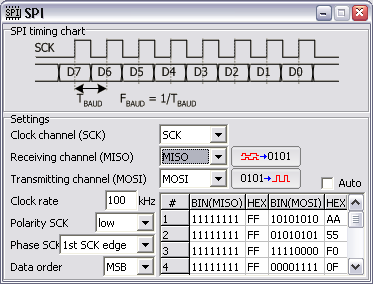

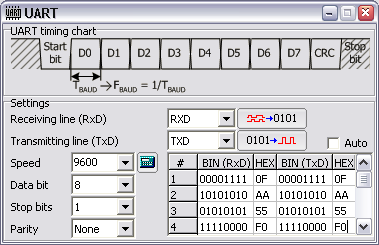

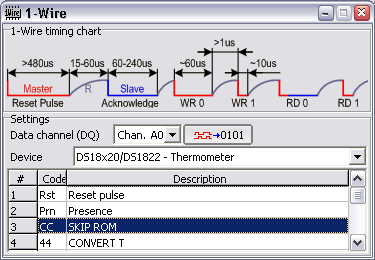

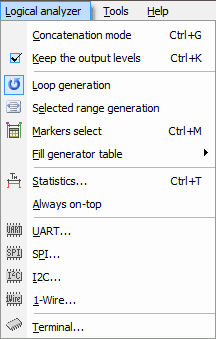

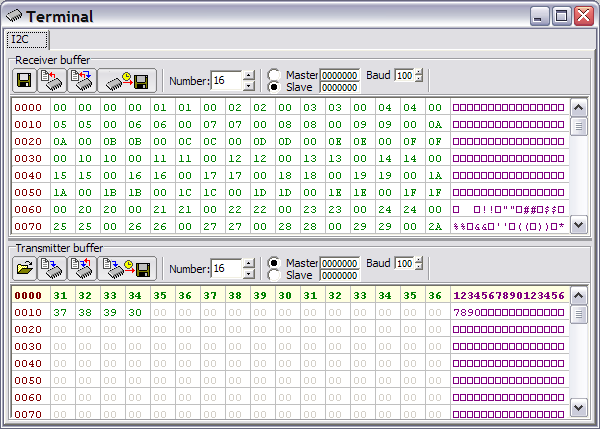

- decoding of the UART, SPI, I2C and 1-Wire interfaces

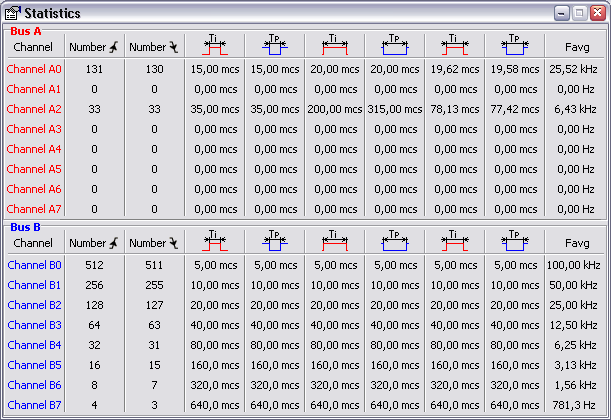

- measurement markers
- triggering (edge, level, mask) and adjustable pretrigger
- external clocking (triggering)
- pulse missing preset
- bit combination search by sequence/edge preset
6-channel logic generator
- tabular waveform formatting
- direct timing chart plotting (using the mouse)
| Logic analyzer | |
| - number of channels | 14 (8 if the logical generator is on) |
| - sample rate | 1 KHz...8 MHz per channel |
| - input voltage | up to 17V for logic "1" |
| - memory depth | |
| buffer reading (Fs=4-8 mHz): | 128 bit/channel |
| buffer reading (Fs=2-2.66 mHz): | 1160 bit/channel |
| buffer reading (Fs<=1 mHz): | 1544 bit/channel |
| buffer reading in concatenation mode: | 1 Mbit/channel |
| pipe reading (Fs < 500KHz): | 4K to 256M bit/channel |
| - input voltage | 0...+5 V (available surge voltage protection) |
| - triggering | for edges, mask, miss pulses, external clocking |
| - clocking | internal / external |
| - maximum input/output current | 10 mA |
| Logic generator | |
| - number of channels | 6 |
| - sample rate | 1 KHz...1 MHz |
| - memory depth | 1544 bit/channel |
| - output voltage | "0" - 0 V, "1" - 3.3 V |
| - maximum input/output current | 10 mA |
Online manual (Select "Logic Analyzer" section. PDF is downloadable with File menu)
Setup instructions
- Download and install DiSco Application
- Follow the Device Driver Installation Wizard instructions, finish the installation
- Connect the device to the USB port and follow the Found New Hardware Wizard instructions
- Chose "No, not this time" at the first screen, and "Install the software automatically" at the second, complete the installation
- Open DiSco Oscilloscope application (you may be warned about firmware upgrade)
- Select Logic Analyzer tab
For Windows 7 64-bit
- Download signed the driver installer: DiscoDriverSigned.zip
- Unpack the archive and run DpInst64.exe to install the driver
Return policy and Manufacturer warranty
We offer you our 30 day money back guarantee on the product and provide the manufacture warranty for 6 (six) months.
Please contact us for any questions: mail@hobbylab.us, use "Arduino Lab" subject to avoid spam filtering.
